Aspect Signals

1:87 HO & HOn3½ Scale Model Kits & Ready to Install Models

First Released - September 2016 - Available Now

Proudly Made in Australia

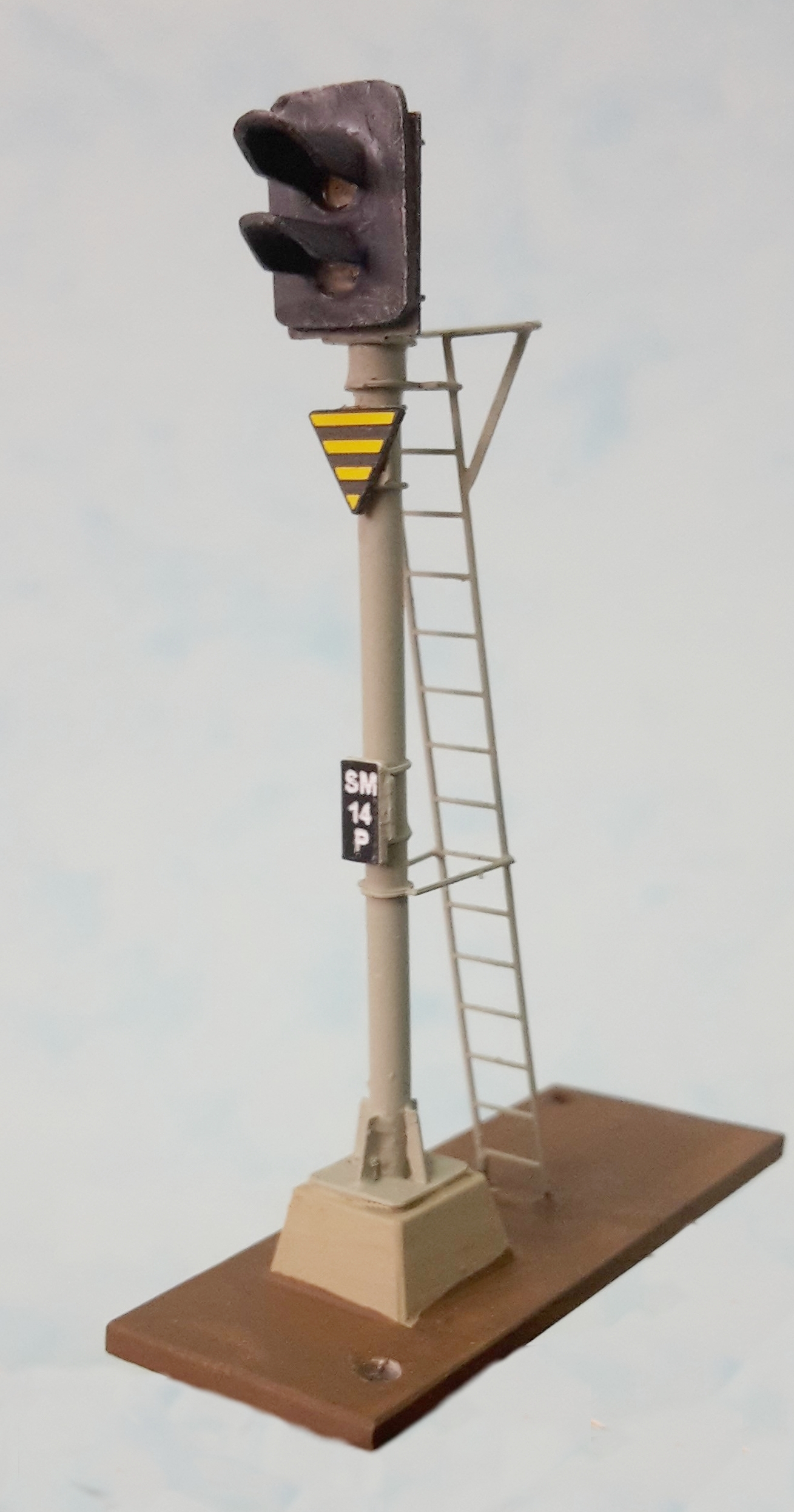

Approach Signal

Prototype Overview

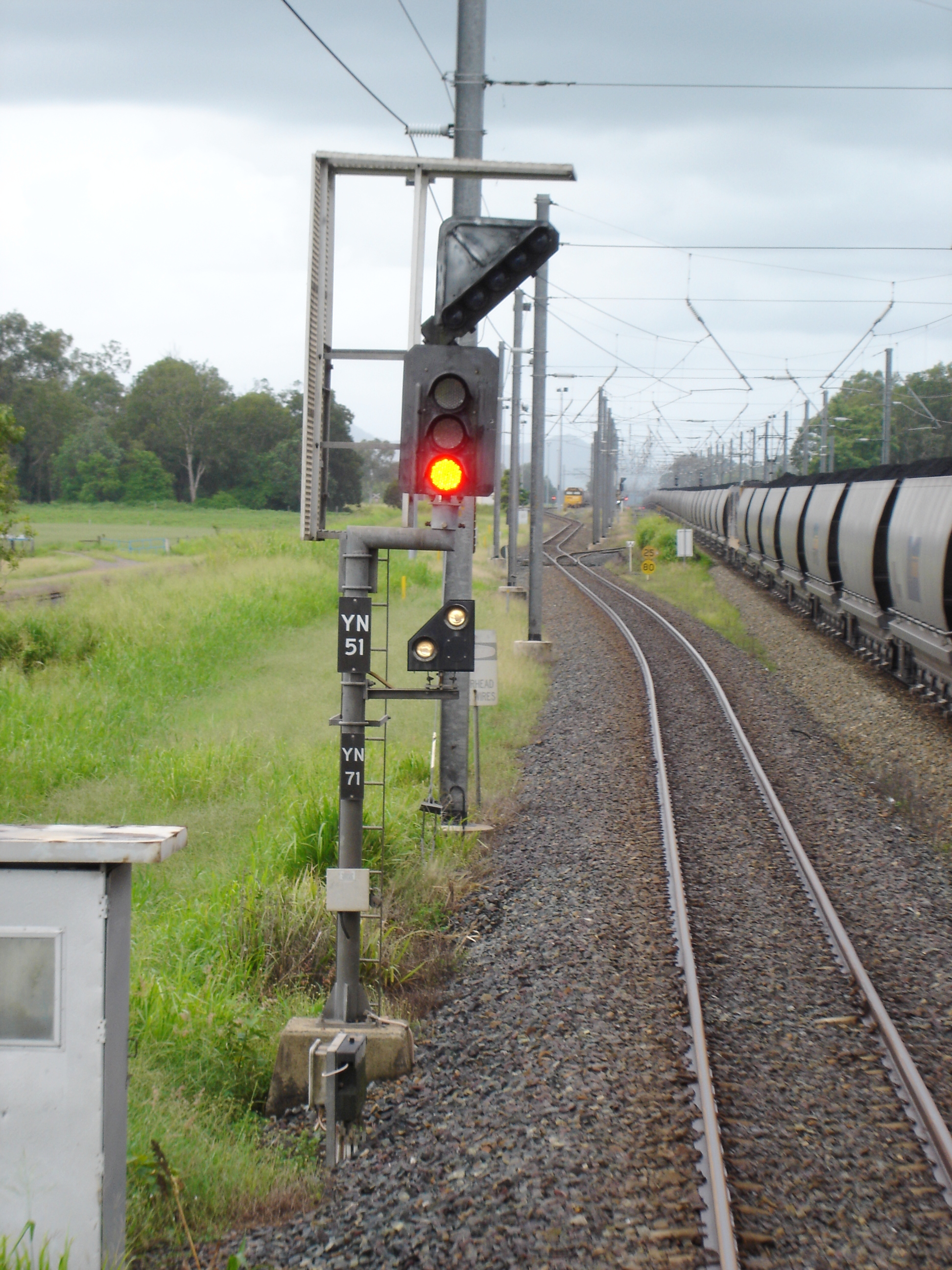

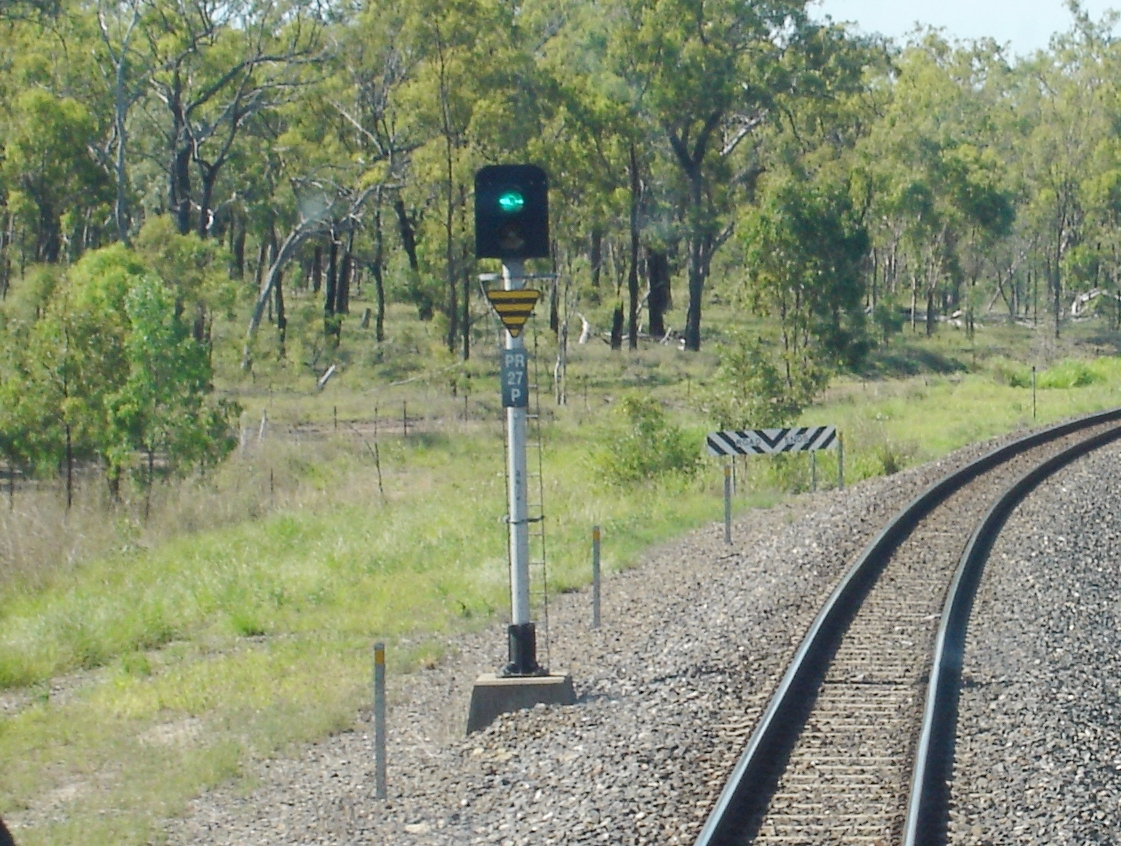

Approach Signals are found on the approach to a passing loop, yard, or station, and are generally located at braking distance from the next STOP signal. Their purpose is to warn train crews that they approaching a signal which may be at STOP.

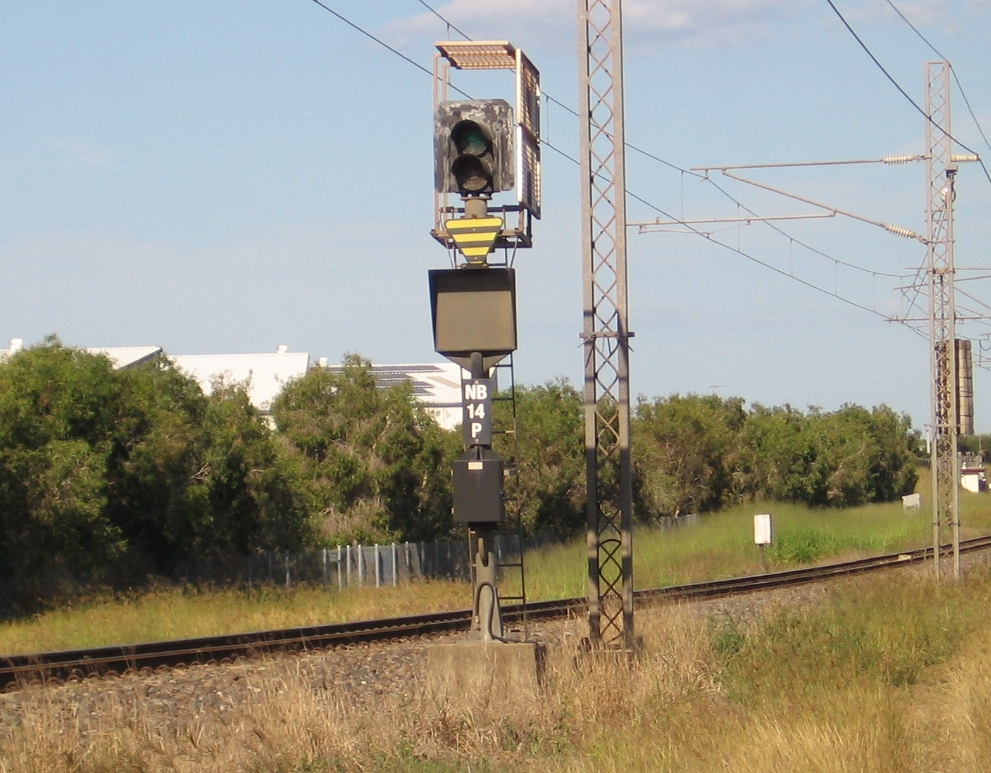

They are easily identified by the small triangular yellow and black beacon sign attached to the signal post.

Model Features

* 1:87 HO & HOn3½ Scale

* Brass & White Metal Construction

* Green & Yellow LED's Included

* Yellow & Black Approach Beacon Triangle Included

* Accurately Reproduced Ladder & Safety Ring

* Available in Kit Form, or Assembled & Finished

* Custom Number Boards Available Separately

Kits

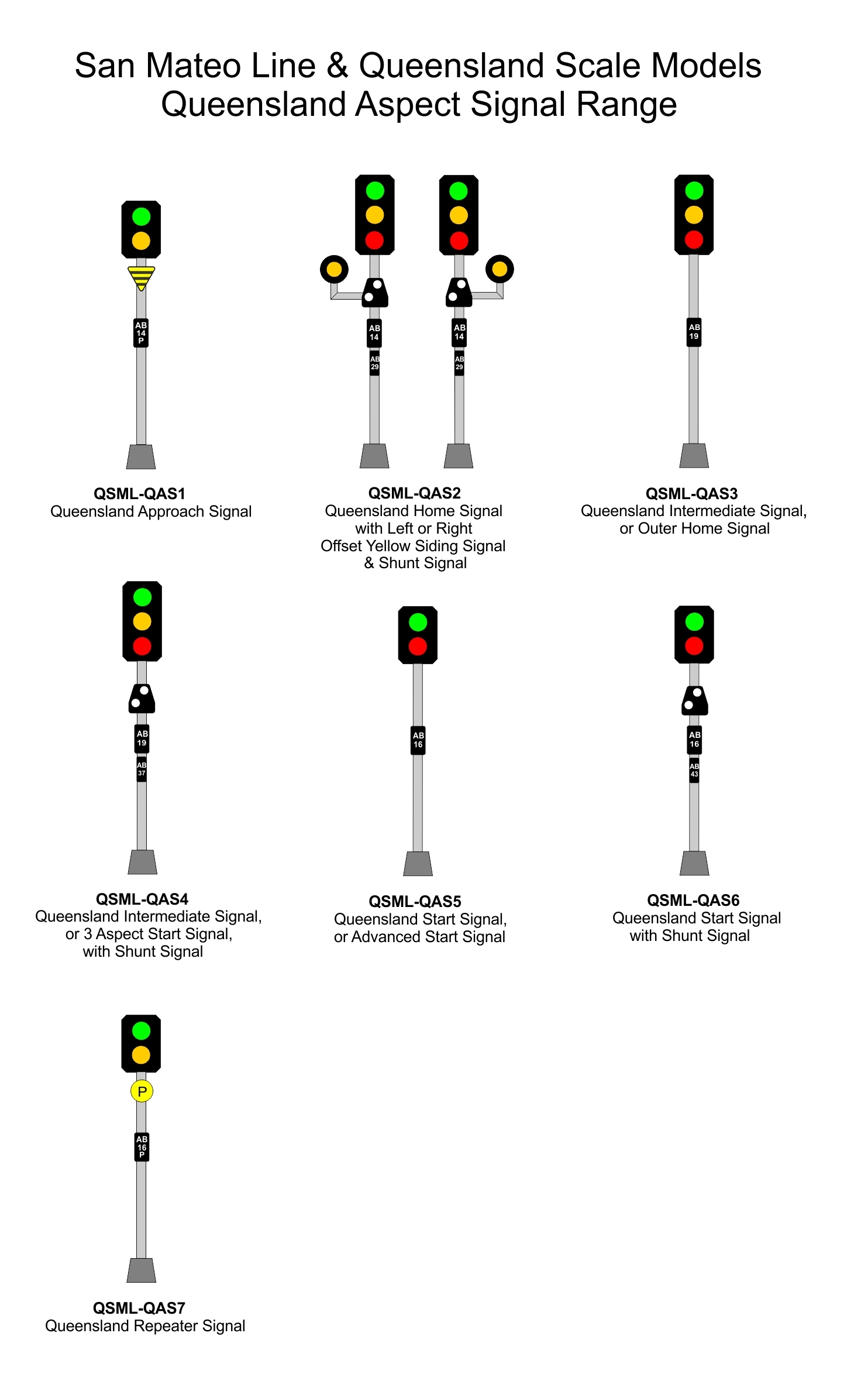

QSML-QAS1 - Queensland Approach Signal

1:87 HO & HOn3½ Scale Kit

* Please Note - Kits Require Soldered Assembly

PRICE - $39.00 - Available Now

Custom Number Boards

Custom Number Boards For QSML-QAS1 - Made To Order

PRICE - $5.50 - Please Enquire - Available Now

Fully Assembled, Painted, & Finished Signal - Ready To Install

QSML-QAS1A - Queensland Approach Signal - Assembled

1:87 HO & HOn3½ Scale Assembled Model - Ready to Install

PRICE - $91.00 - Available Now

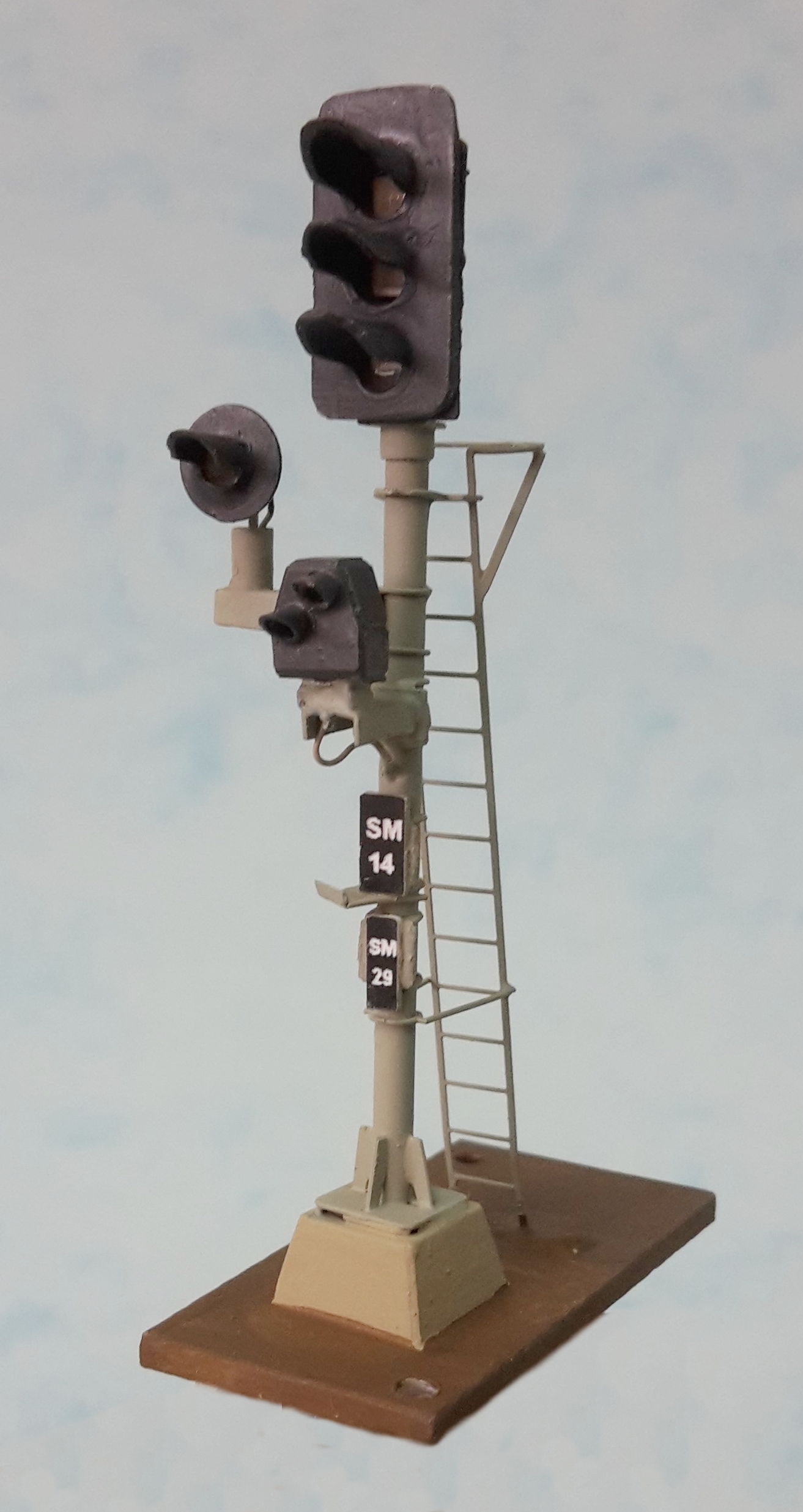

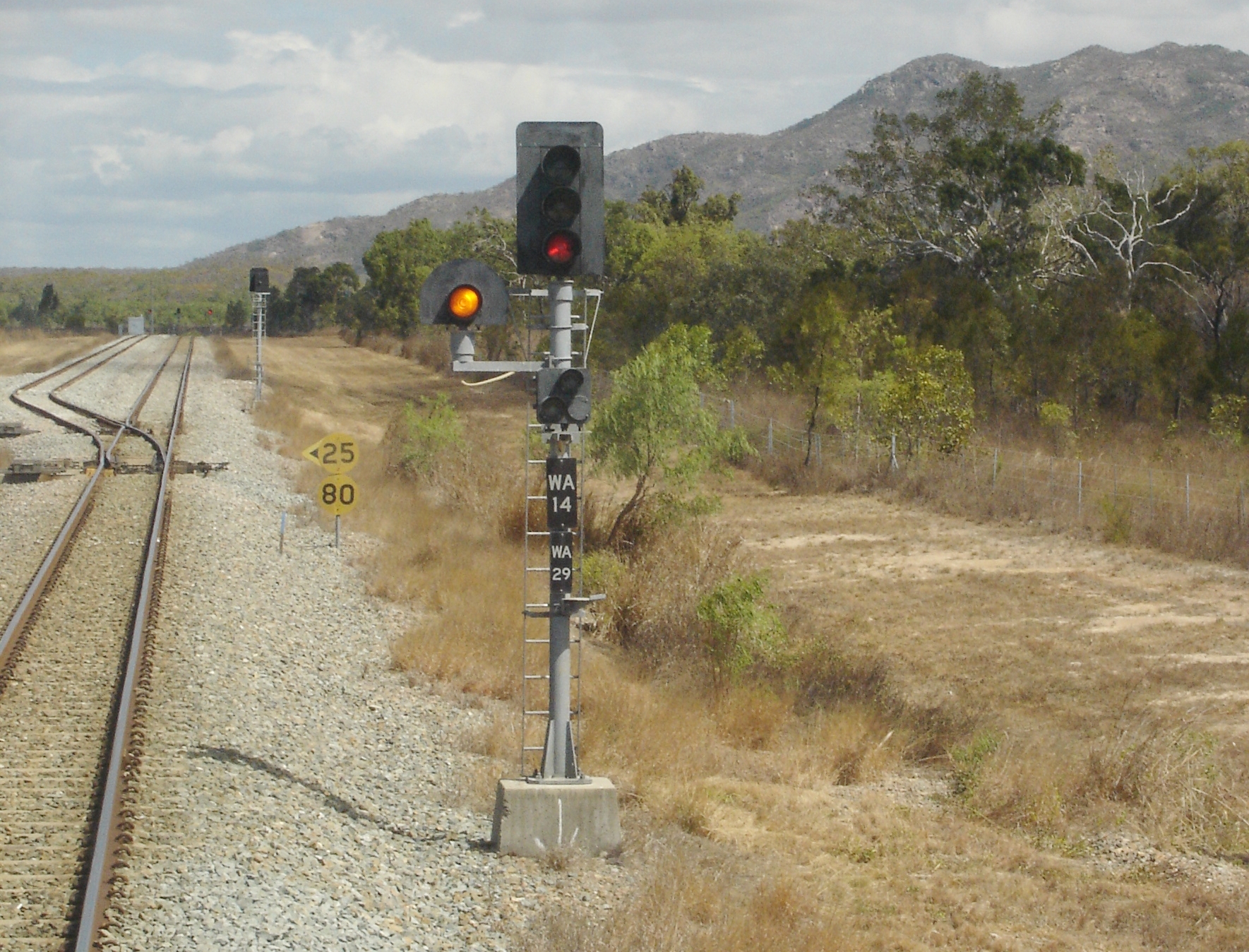

Home Signal

Prototype Overview

Home Signals are located just before the entrance to a passing loop, yard, or station. Their purpose is to control the entrance of trains into a station or yard.

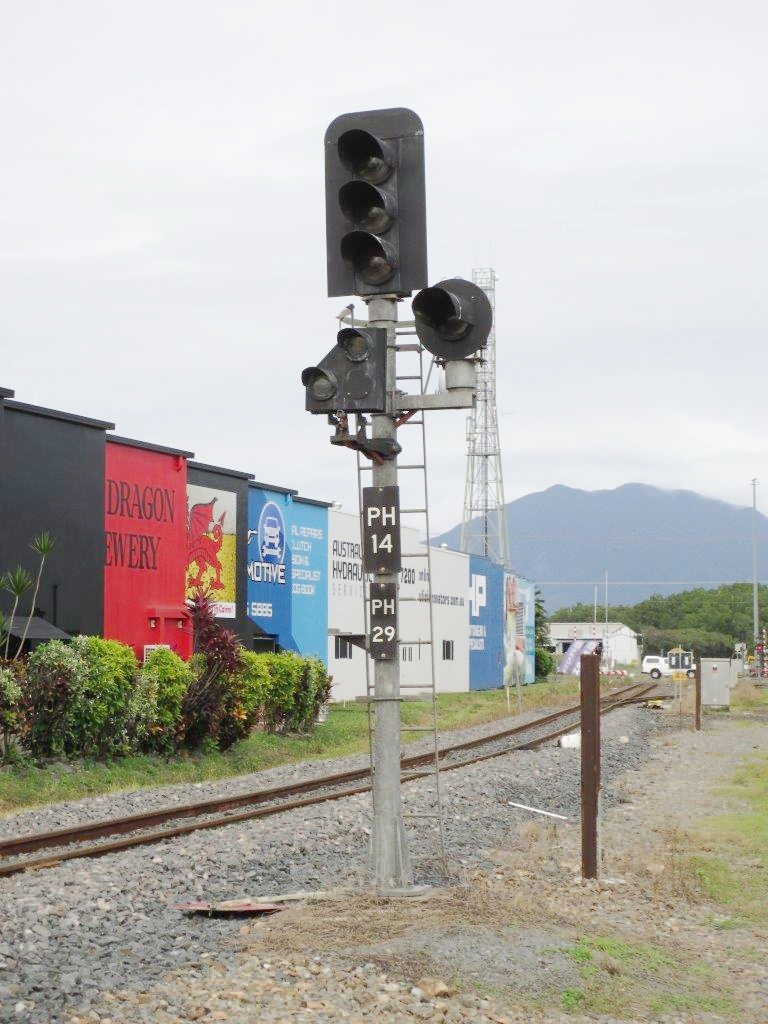

The style of Home Signal we have modelled is one of the patterns used on the Queensland system. This particular pattern is widely used on the North Coast Line, North of Rockhampton, and on the Toowoomba Range West of Helidon.

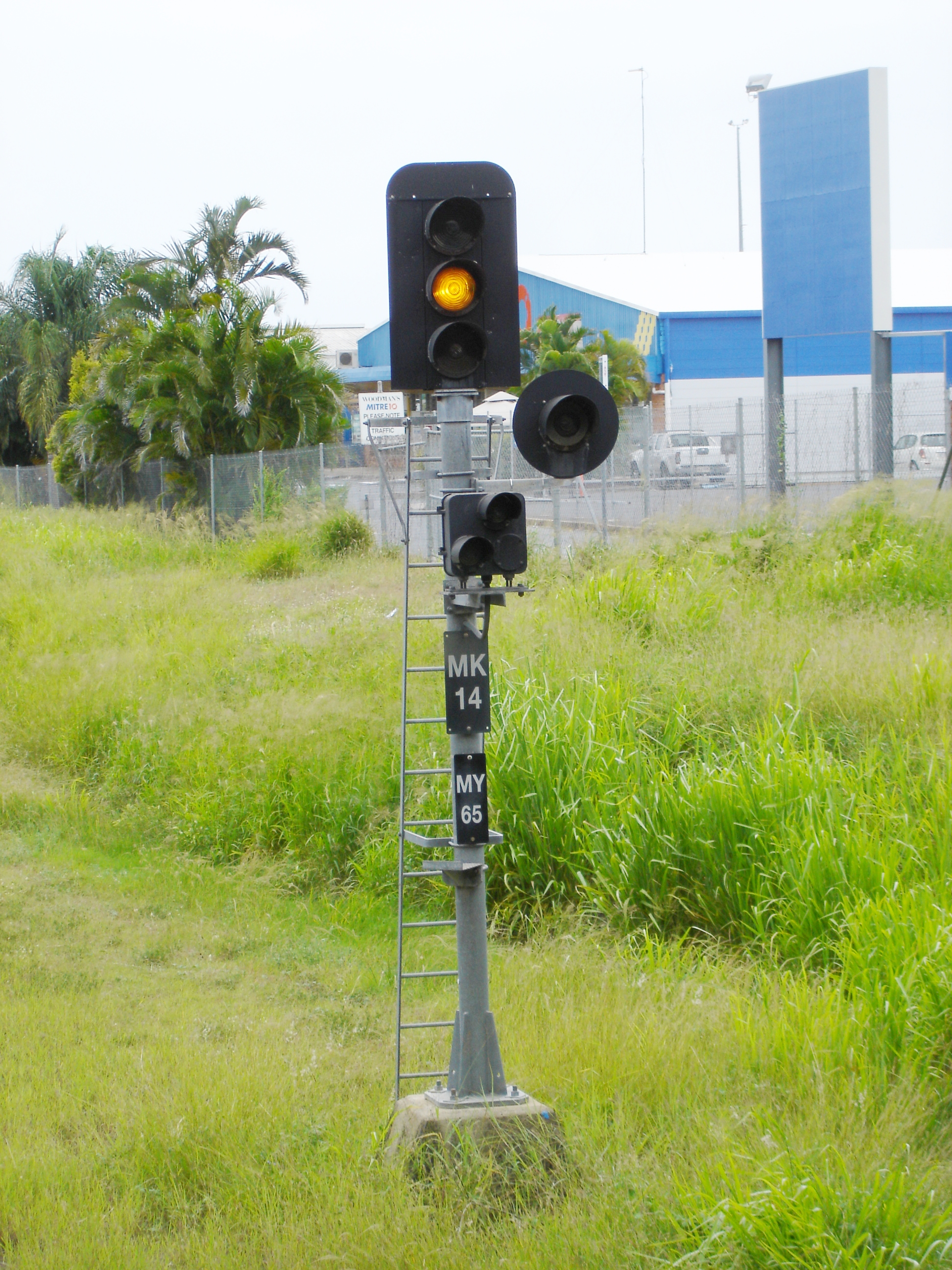

The offset Yellow Siding Signal is mounted on a bracket on the left or right hand side of the signal post, as determined by the direction of the turnout beyond. Its purpose is to control the movement of trains from the main line into sidings or through loop lines.

Shunt Signals are commonly mounted on a Home Signal to control shunting operations. The Shunt Signal is mounted on a bracket in the front of the signal post.

Model Features

* 1:87 HO & HOn3½ Scale

* Brass & White Metal Construction

* Green, Yellow, & Red LED's Included

* Operational Shunt Signal with white LED

* Operational Offset Yellow LED Siding Signal

* Optional L/H or R/H Side Mounting of Siding Signal

* Accurately Reproduced Ladder & Safety Ring

* Available in Kit Form, or Assembled & Finished

* Custom Number Boards Available Separatly

Kits

QSML-QAS2 - Queensland Approach Signal with Ofsett Yellow Siding Signal & Shunt Signal

1:87 HO & HOn3½ Scale Kit

* Please Note - Kits Require Soldered Assembly

PRICE - $50.00 - Available Now

Custom Number Boards

Custom Number Boards For QSML-QAS2 (2 Boards) - Made To Order

PRICE - $8.80 - Please Enquire - Available Now

Fully Assembled, Painted, & Finished Signal - Ready To Install

QSML-QAS2ALH - Qld Approach Signal with Ofsett L/H Yellow Siding Signal & Shunt Signal

1:87 HO & HOn3½ Scale Assembled Model - Ready to Install

QSML-QAS2ARH - Qld Approach Signal with Ofsett R/H Yellow Siding Signal & Shunt Signal

1:87 HO & HOn3½ Scale Assembled Model - Ready to Install

PRICE - $135.00 - Available Now

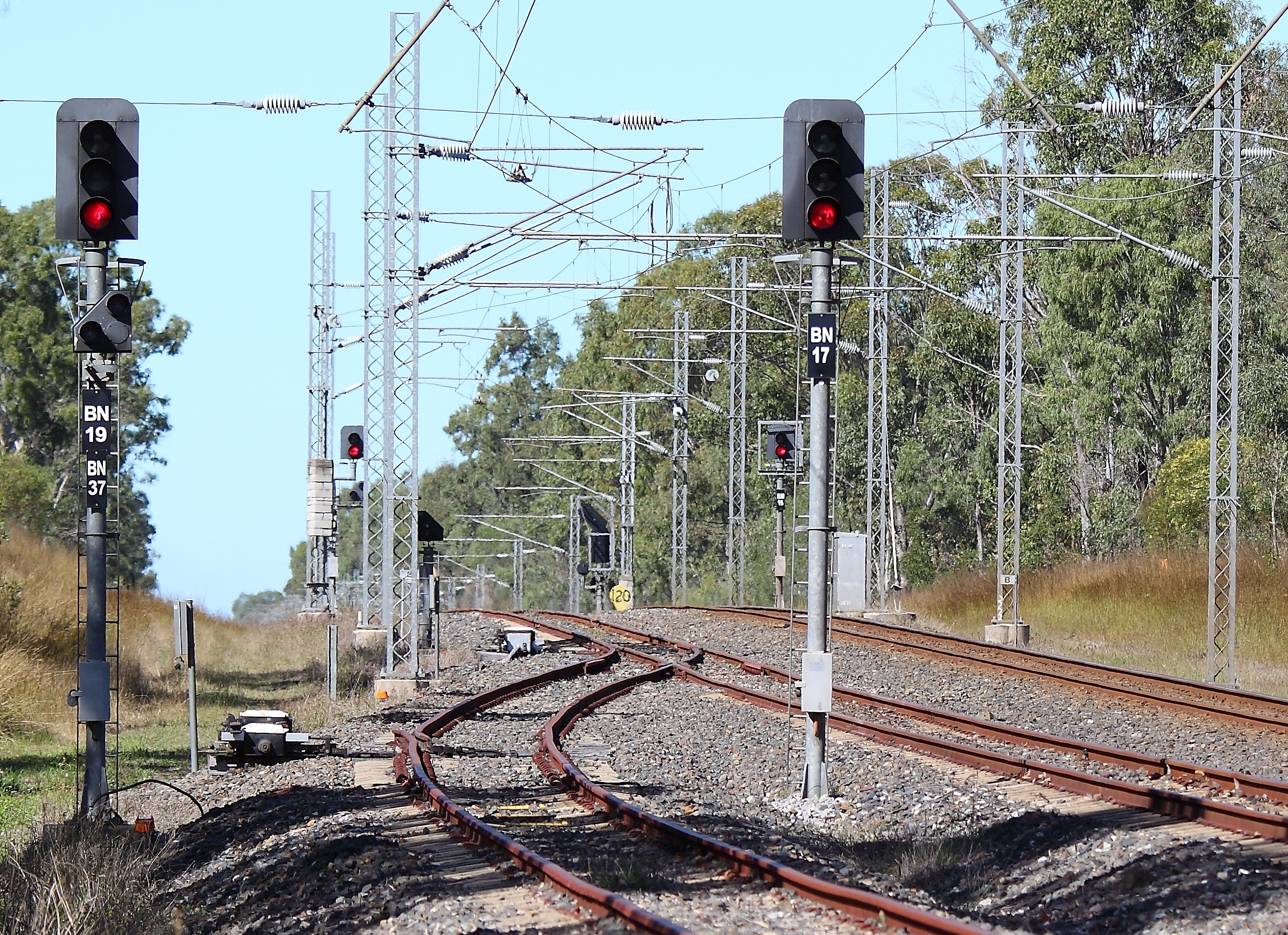

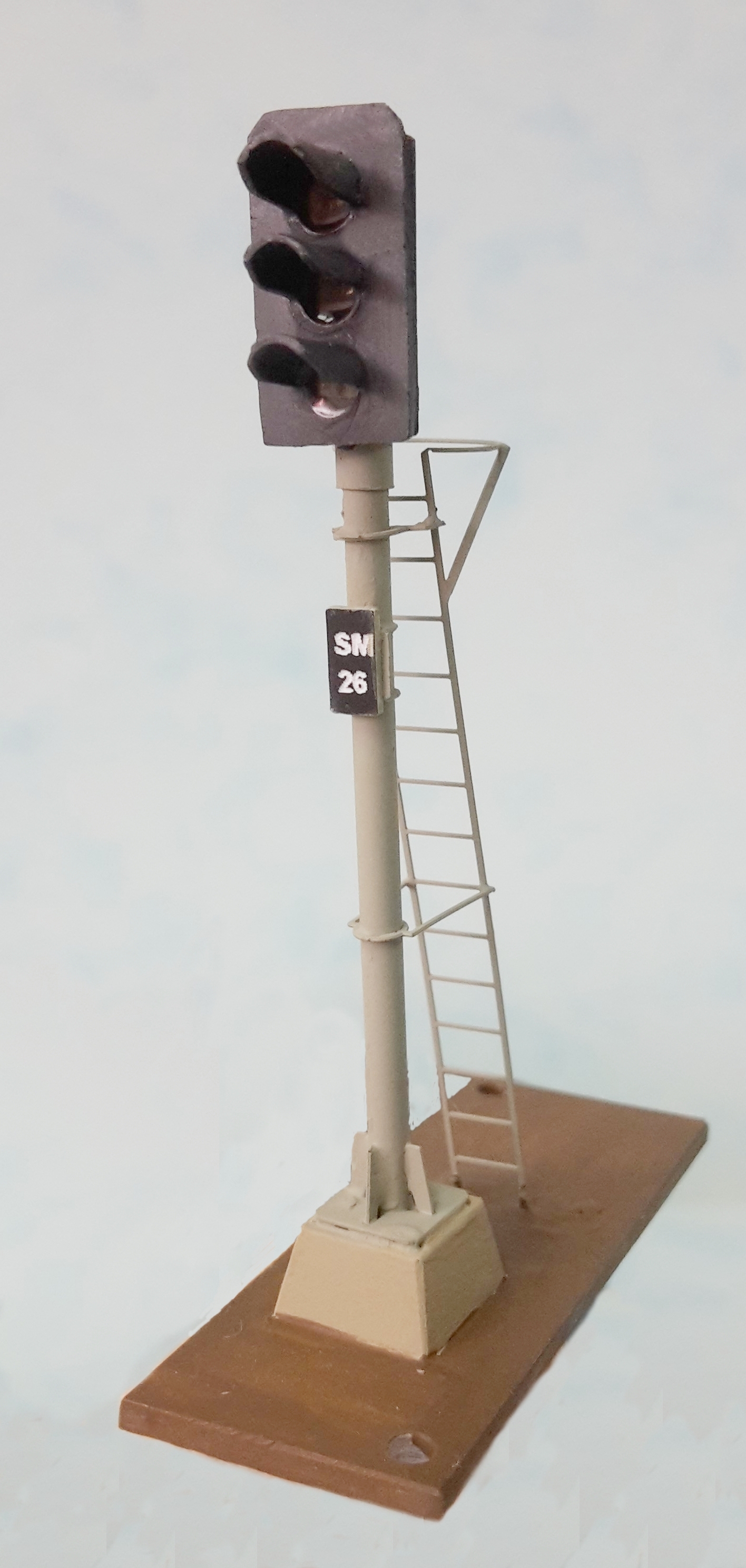

Intermediate Signal

Prototype Overview

Intermediate Signals are a 3 Aspect Green/Yellow/Red signal located prior to a set of points, crossover, or level crossing in the middle of a yard.

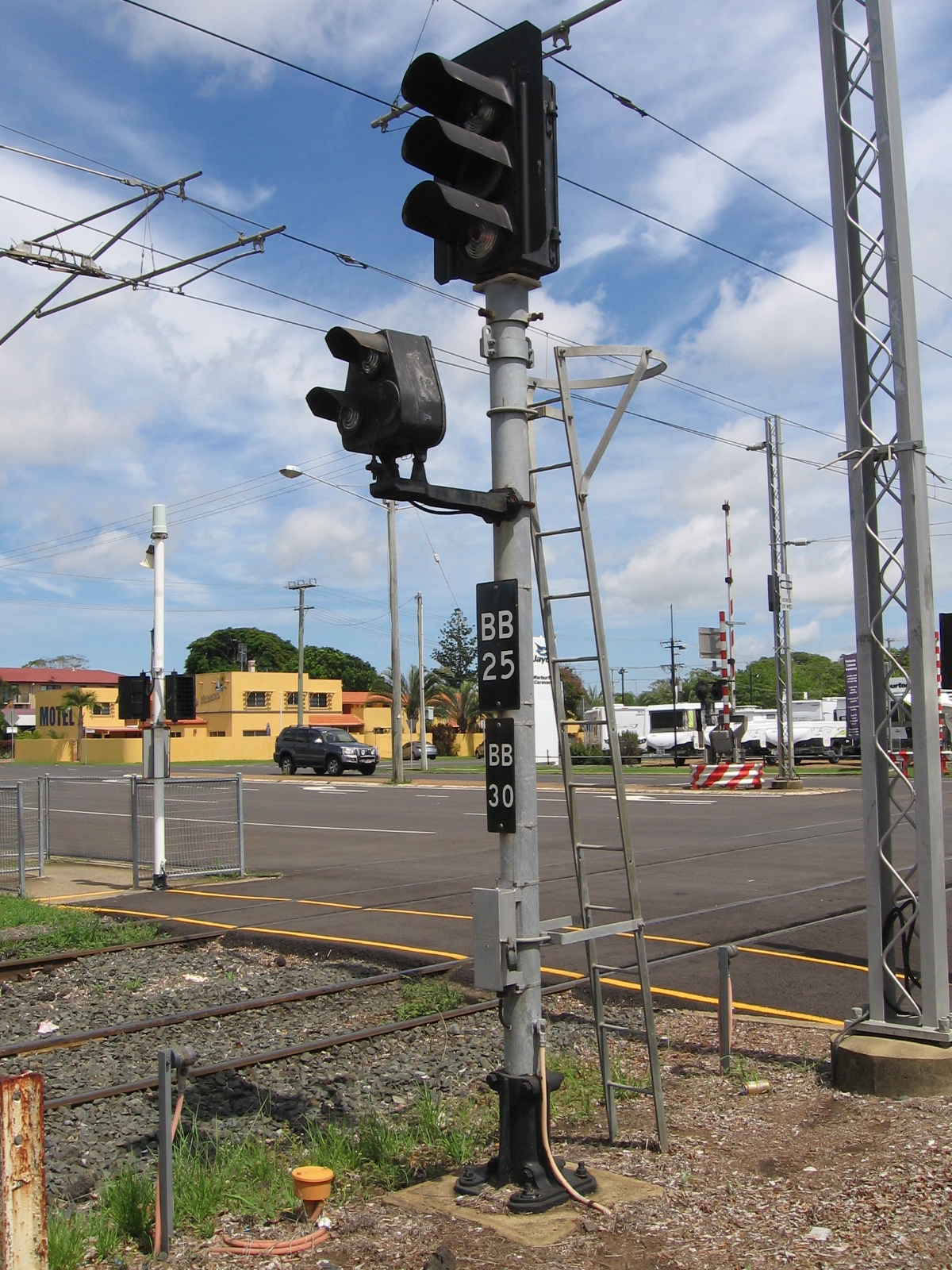

Intermediate Signals can be also be found with a Shunt Signal attached.

The basic 3 Aspect Signal without shunt signal can also be used as an Outer Home Signal in some locations, and also as a 3 Aspect Start Signal. When used as a 3 Aspect Start Signal, they are usually fitted with a Shunt Signal..

Model Features

* 1:87 HO & HOn3½ Scale

* Brass & White Metal Construction

* Green, Yellow & Red LED's Included

* Accurately Reproduced Ladder & Safety Ring

* Available in Kit Form, or Assembled & Finished

* Custom Number Boards Available Separately

Kits

QSML-QAS3 - Queensland Intermediate Signal (Also Used As Outer Home Signal)

1:87 HO & HOn3½ Scale Kit

* Please Note - Kits Require Soldered Assembly

PRICE - $39.00 - Available Now

Custom Number Boards

Custom Number Boards For QSML-QAS3 - Made To Order

PRICE - $5.50 - Please Enquire - Available Now

Fully Assembled, Painted, & Finished Signal - Ready To Install

QSML-QAS3A - Queensland Approach Signal - Assembled

1:87 HO & HOn3½ Scale Assembled Model - Ready to Install

PRICE - $91.00 - Available Now

Intermediate Signal with Shunt Signal

Model Features

* 1:87 HO & HOn3½ Scale

* Brass & White Metal Construction

* Green, Yellow & Red LED's Included

* Operational Shunt Signal with white LED

* Accurately Reproduced Ladder & Safety Ring

* Available in Kit Form, or Assembled & Finished

* Custom Number Boards Available Separately

Kits

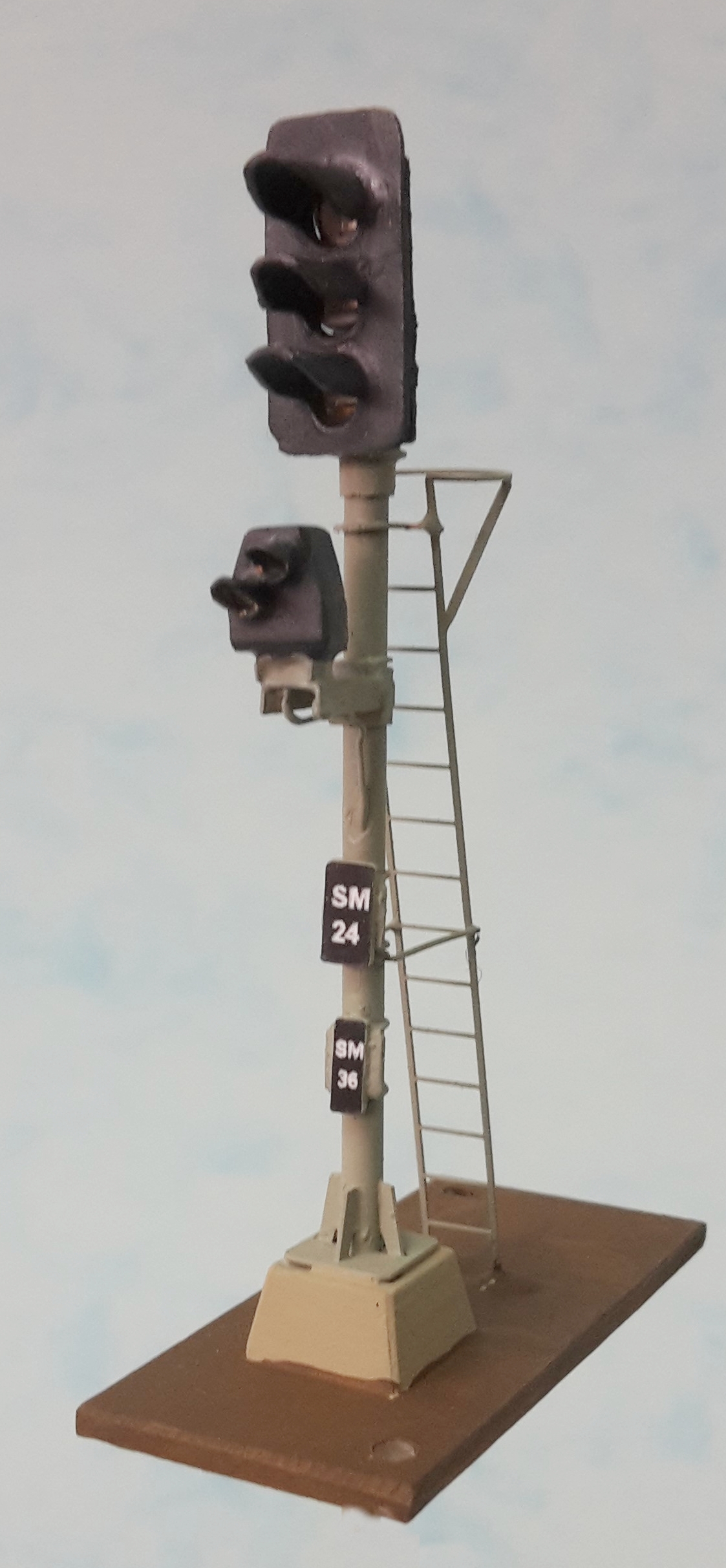

QSML-QAS4 - Queensland Intermediate Signal (Also Used As 3 Aspect Start Signal)

1:87 HO & HOn3½ Scale Kit

* Please Note - Kits Require Soldered Assembly

PRICE - $45.00 - Available Now

Custom Number Boards

Custom Number Boards For QSML-QAS4 (2 Boards) - Made To Order

PRICE - $8.80 - Please Enquire - Available Now

Fully Assembled, Painted, & Finished Signal - Ready To Install

QSML-QAS4A - Queensland Approach Signal - Assembled

1:87 HO & HOn3½ Scale Assembled Model - Ready to Install

PRICE - $110.00 - Available Now

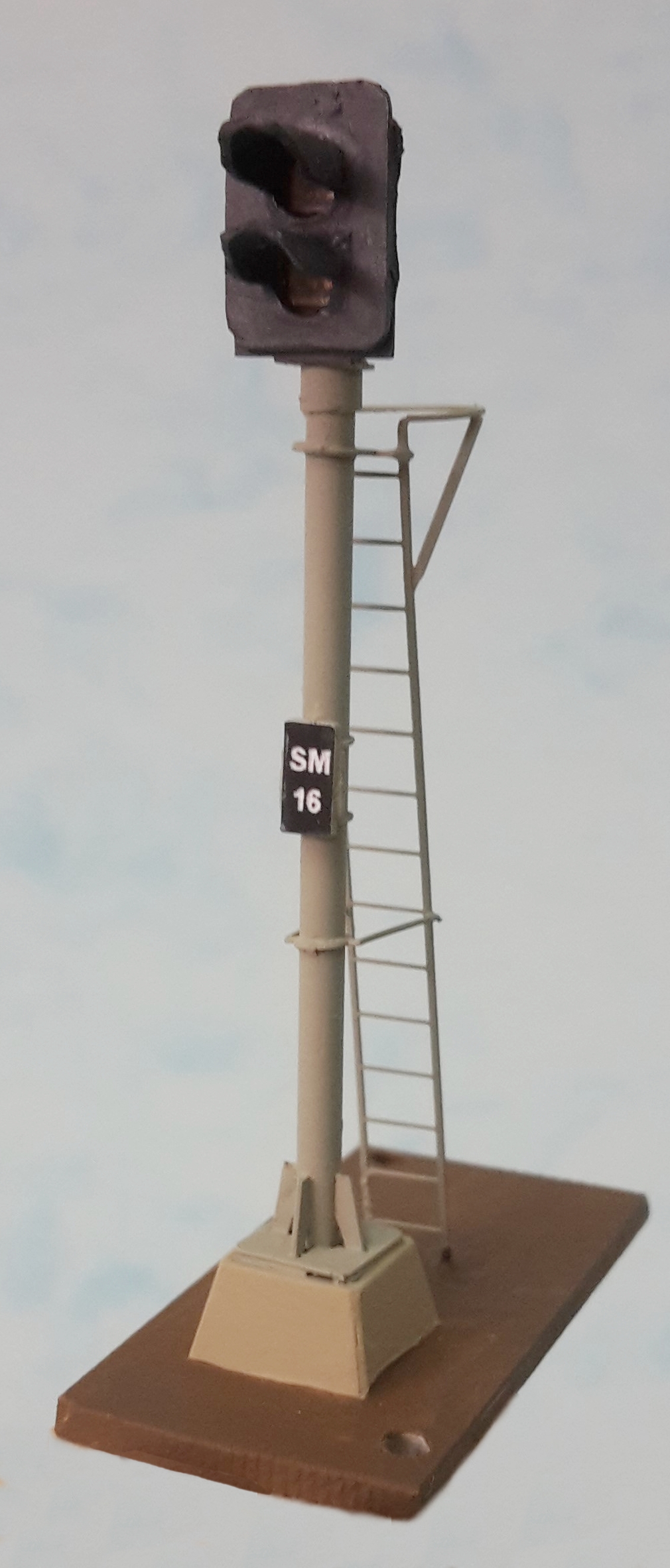

Start Signal

Prototype Overview

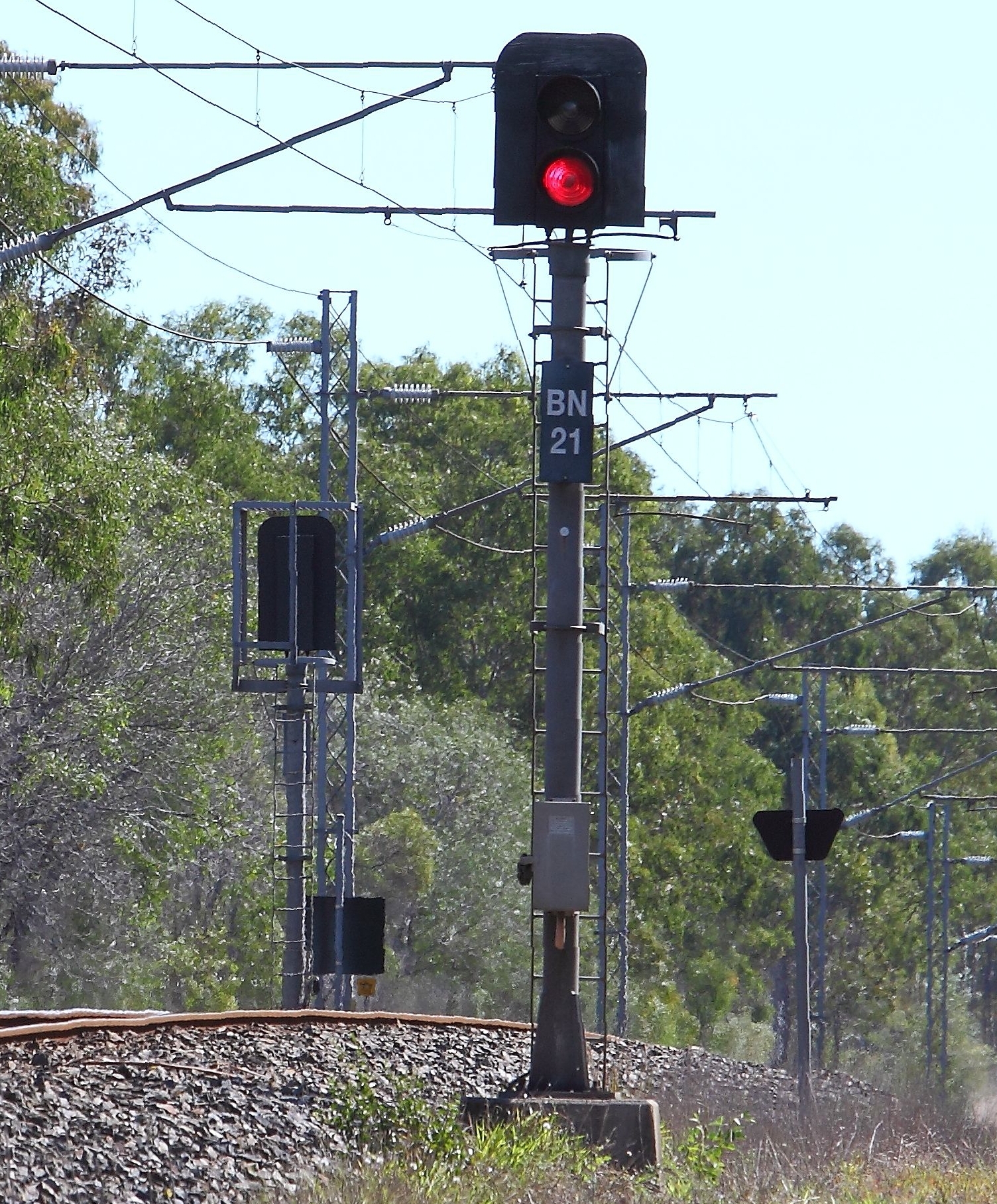

Start Signals are generally positioned at the end of a yard or passing loop, and used to permit the entry into the next block section of track. The 2 Aspect Green/Red can also be used as an Advanced Starter beyond the end of the yard when a 3 Aspect Start Signal has been positioned prior to the end of a yard.

2 Aspect Start Signals can be found with, or without a Shunt Signal.

Model Features

* 1:87 HO & HOn3½ Scale

* Brass & White Metal Construction

* Green & Red LED's Included

* Accurately Reproduced Ladder & Safety Ring

* Available in Kit Form, or Assembled & Finished

* Custom Number Boards Available Separately

Kits

QSML-QAS5 - Queensland Start Signal

1:87 HO & HOn3½ Scale Kit

* Please Note - Kits Require Soldered Assembly

PRICE - $39.00 - Available Now

Custom Number Boards

Custom Number Boards For QSML-QAS5 - Made To Order

PRICE - $5.50 - Please Enquire - Available Now

Fully Assembled, Painted, & Finished Signal - Ready To Install

QSML-QAS5A - Queensland Approach Signal - Assembled

1:87 HO & HOn3½ Scale Assembled Model - Ready to Install

PRICE - $91.00 - Available Now

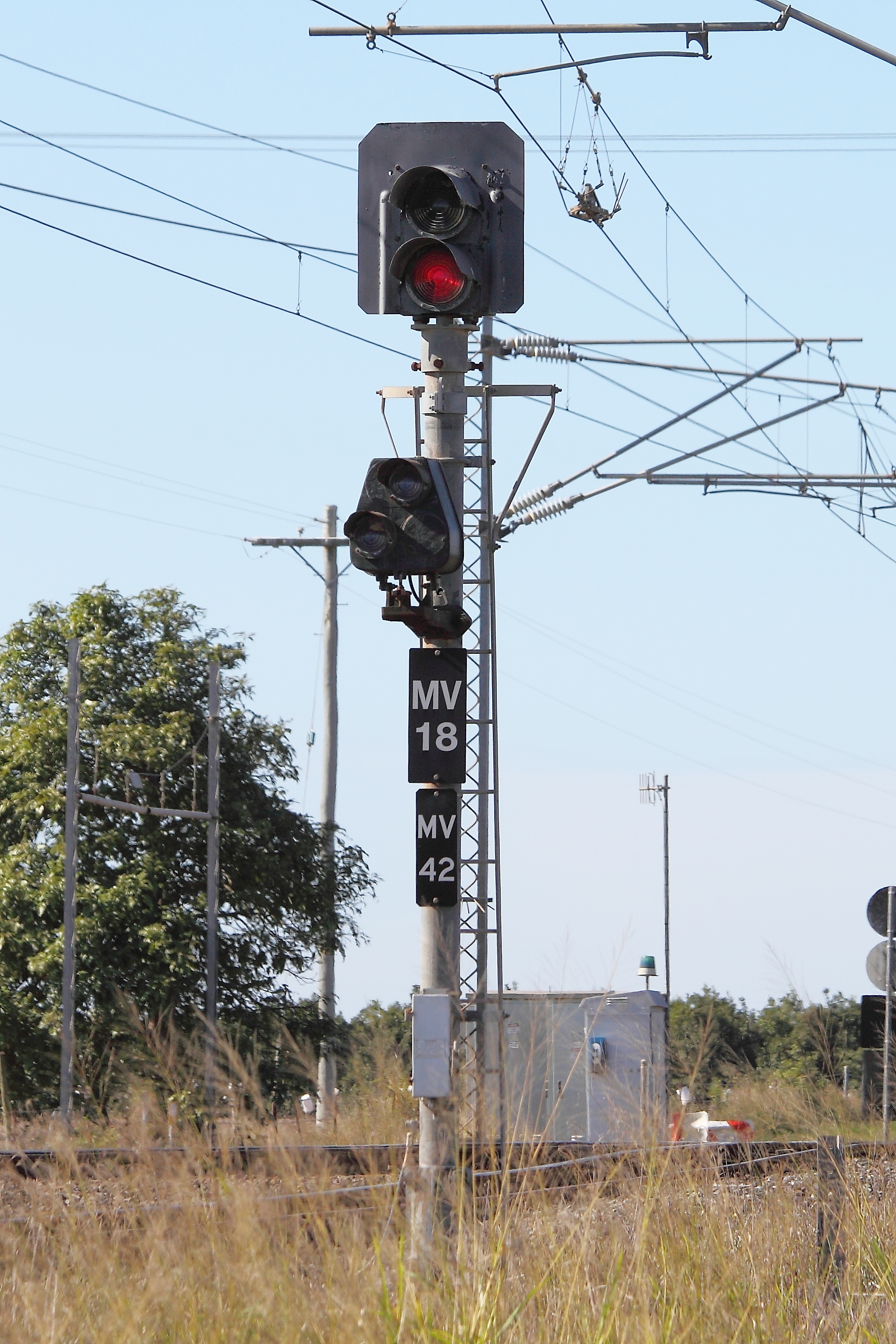

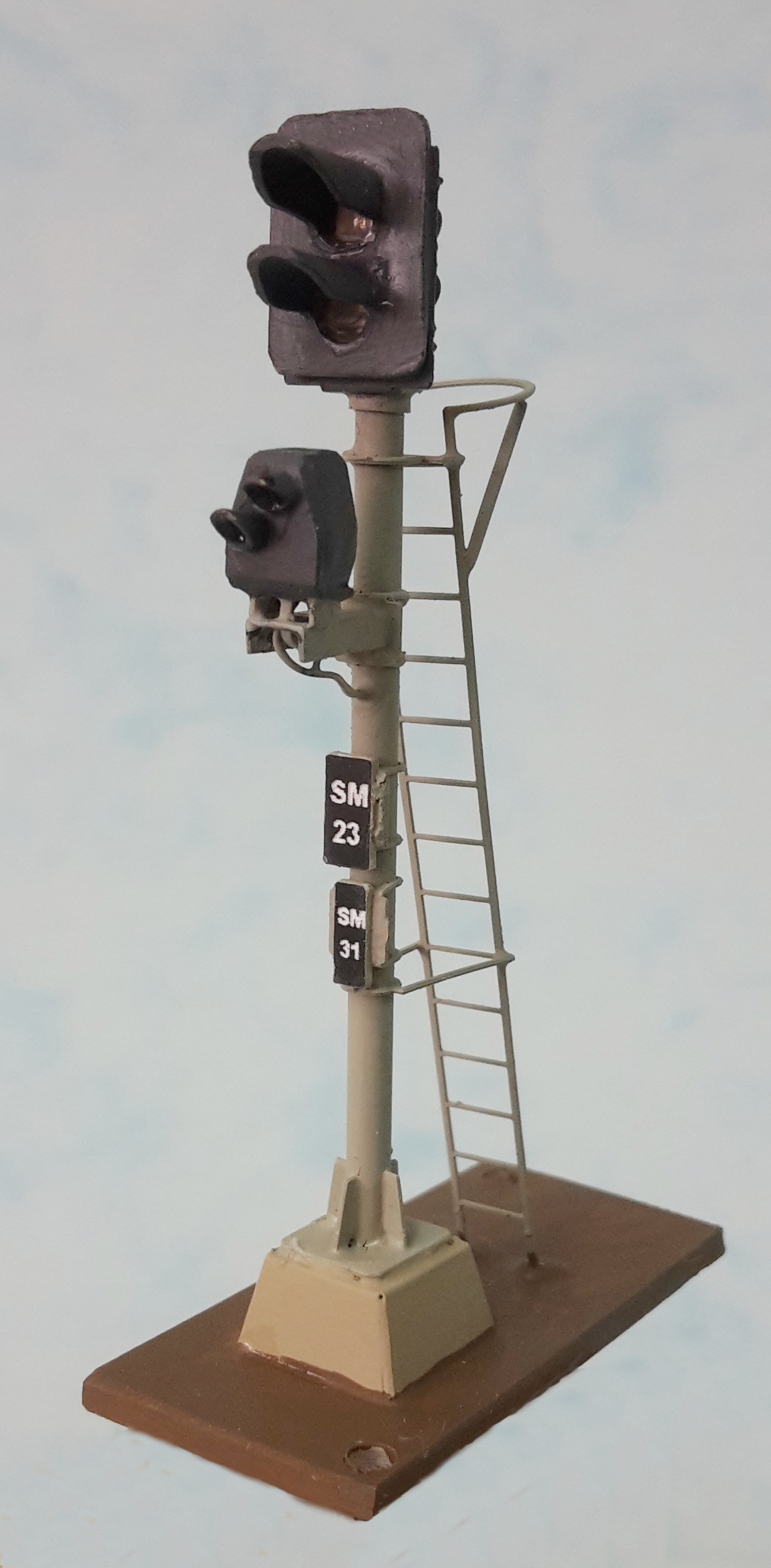

Start Signal with Shunt Signal

Model Features

* 1:87 HO & HOn3½ Scale

* Brass & White Metal Construction

* Green & Red LED's Included

* Operational Shunt Signal with white LED

* Accurately Reproduced Ladder & Safety Ring

* Available in Kit Form, or Assembled & Finished

* Custom Number Boards Available Separately

Kits

QSML-QAS6 - Queensland Start Signal with Shunt Signal

1:87 HO & HOn3½ Scale Kit

* Please Note - Kits Require Soldered Assembly

PRICE - $45.00 - Available Now

Custom Number Boards

Custom Number Boards For QSML-QAS6 (2 Boards) - Made To Order

PRICE - $8.80 - Please Enquire - Available Now

Fully Assembled, Painted, & Finished Signal - Ready To Install

QSML-QAS6A - Queensland Approach Signal - Assembled

1:87 HO & HOn3½ Scale Assembled Model - Ready to Install

PRICE - $110.00 - Available Now

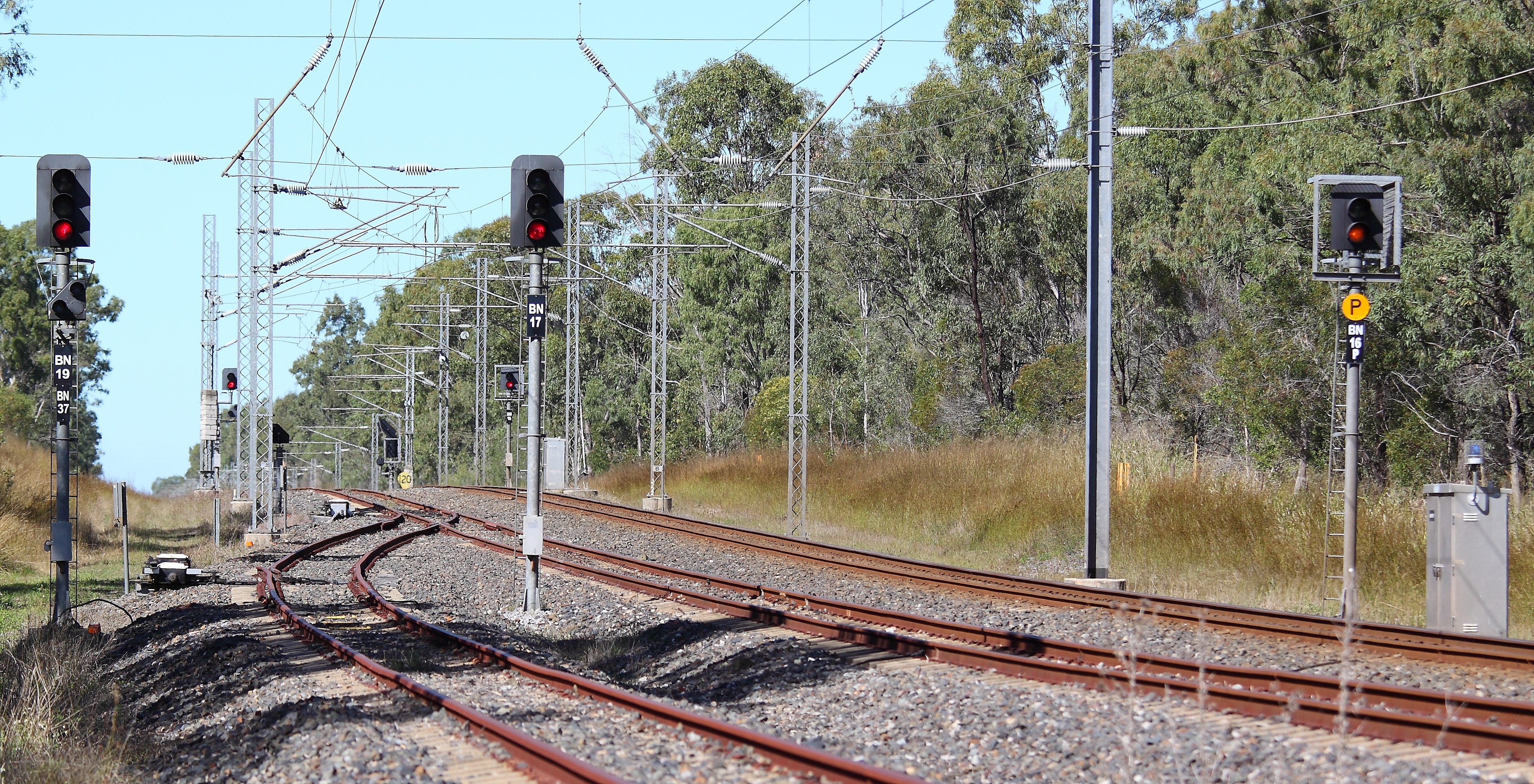

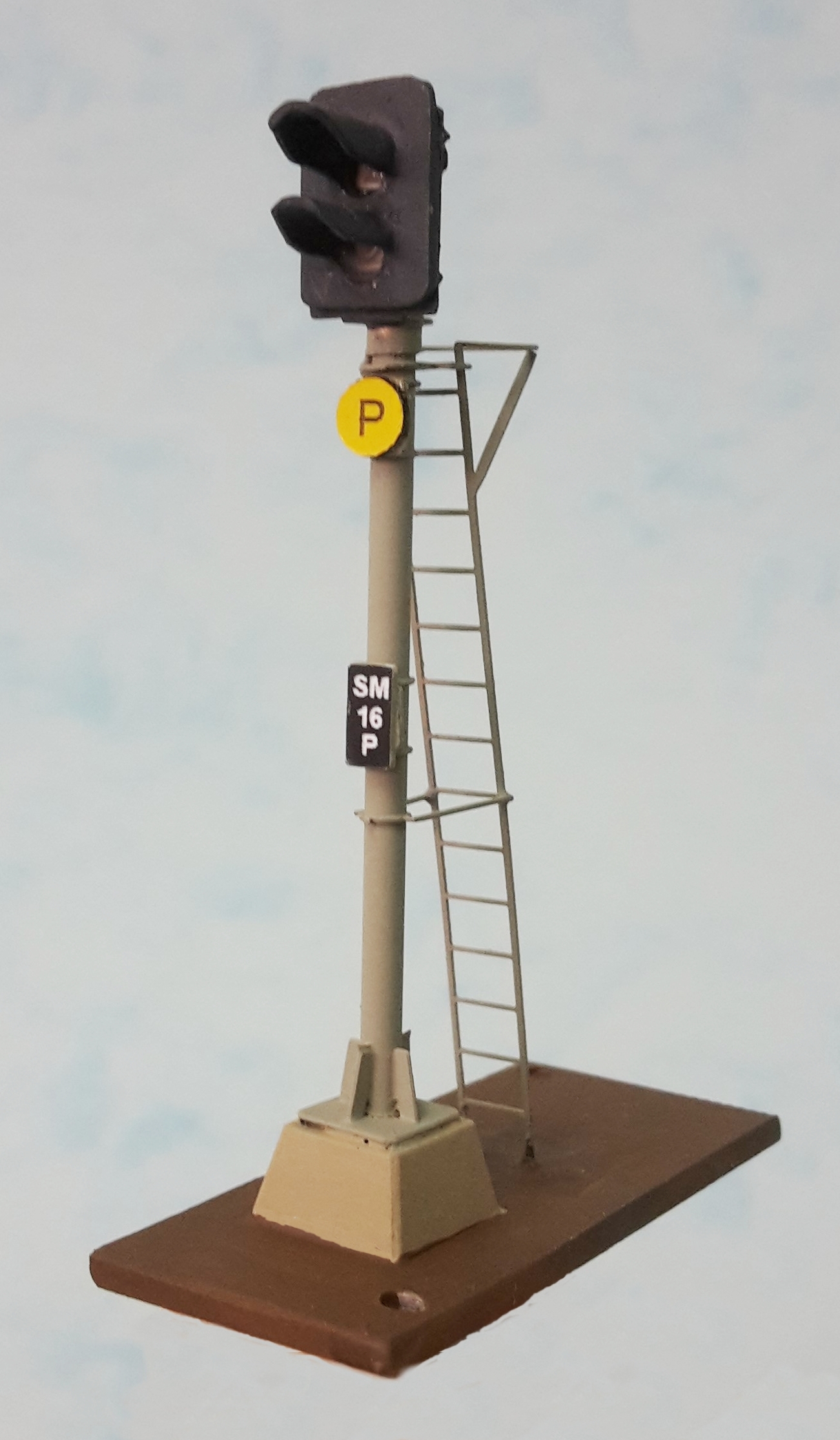

Repeat Signal

Prototype Overview

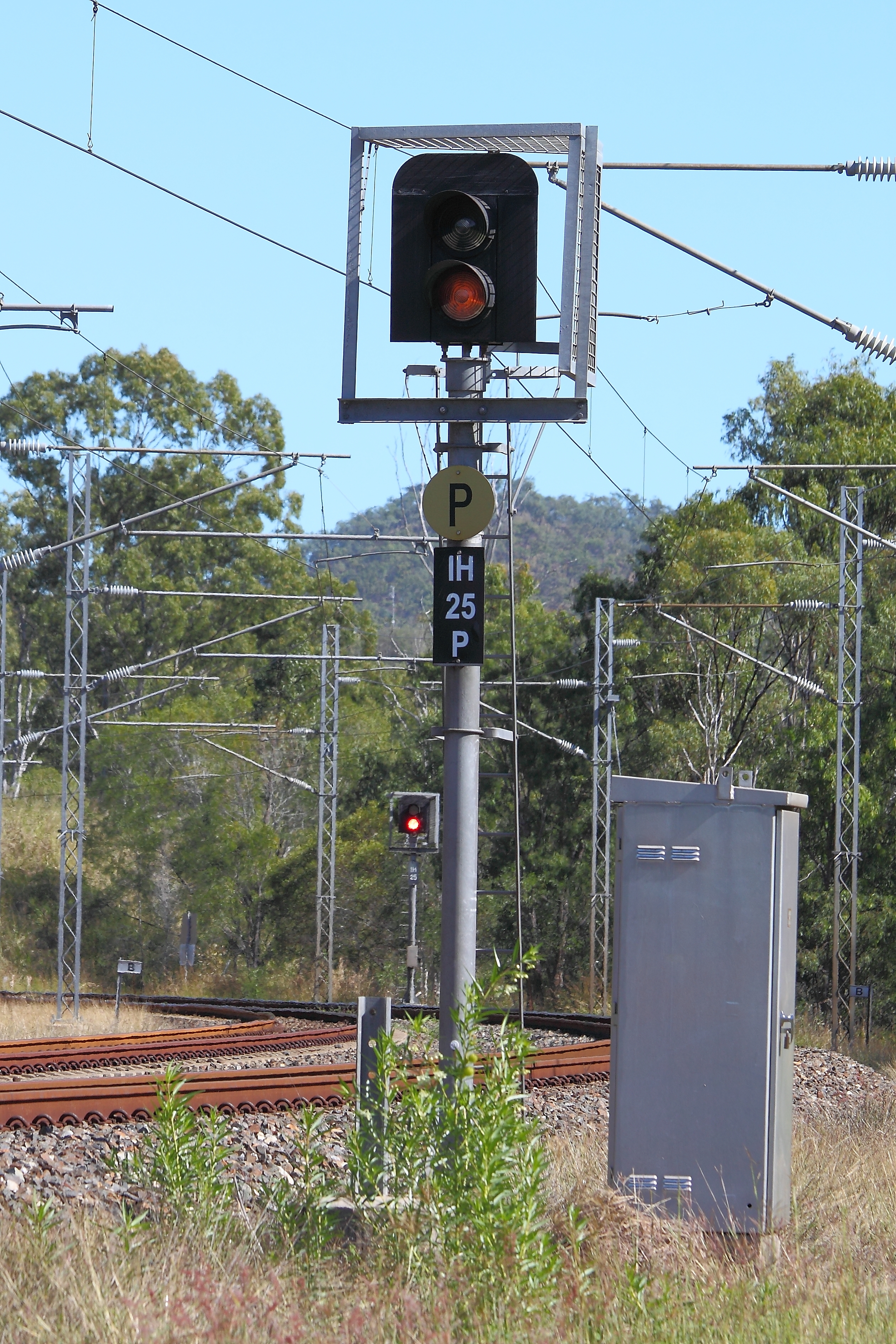

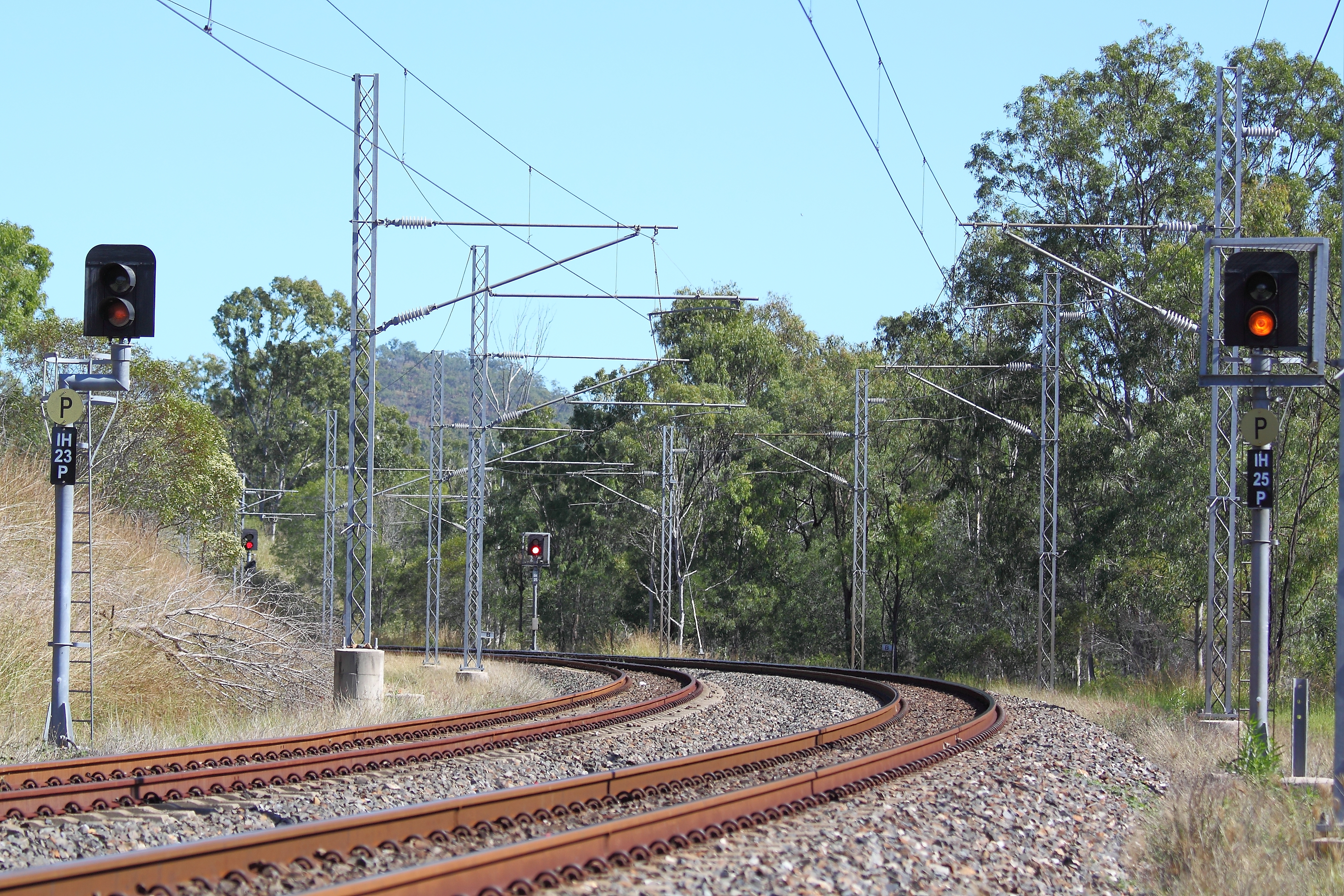

Repeat Signals are placed prior to any stop signal that has reduced sighting distance due to track curvature, cutting, structures, etc.. Other locations for their use include; where there are stop signal/s fitted to adjacent lines and no stop signal is present on another adjacent line. For continuity of signals, a repeat signal is installed.

Repeat Signals are not located at braking distance from the signal they are repeating.

They are easily identified by the small yellow disc with a black letter "P" attached to the signal post.

Model Features

* 1:87 HO & HOn3½ Scale

* Brass & White Metal Construction

* Green & Yellow LED's Included

* Yellow & Black "P" Repeat Sign Included

* Accurately Reproduced Ladder & Safety Ring

* Available in Kit Form, or Assembled & Finished

* Custom Number Boards Available Separately
